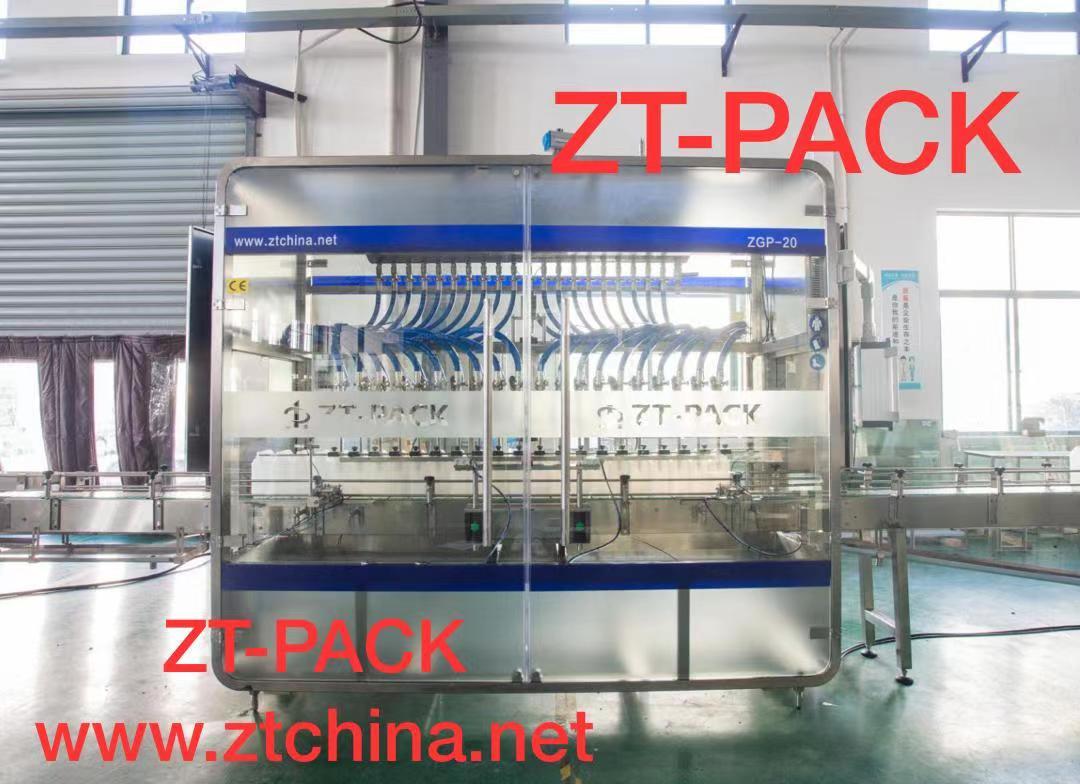

Foodstuff Gravity Filling Machine

+
  • 261611474295_.pic_hd.jpg

Gravity filling machines are the most economical and easy to operate filling machines but have the limit to filling free flowing liquids with very thin viscosity that do not change with ambient temperature or with batch variation. It's widely used to fill food and beverage, cleaning and specialty chemical, pharmaceutical, cosmetic and personal care industries for various low viscous filling projects.

Gravity filling machines are the most economical and easy to operate filling machines but have the limit to filling free flowing liquids with very thin viscosity that do not change with ambient temperature or with batch variation. It's widely used to fill food and beverage, cleaning and specialty chemical, pharmaceutical, cosmetic and personal care industries for various low viscous filling projects.

产品描述

Machine Description :

Time gravity filling machine is the most economical type of time filling machine for a limited range of applications.

The time filling machines work by a simple principle. Liquid is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the time flow filling machine master computer so that the precise amount of the liquid will flow by gravity into the containers, Independent timing of each filling valve/nozzle corrects for minor variations in flow rates so that each container is filled accurately. An automatic product level sensing float system detects level of the liquid to maintain pressure so that liquid can flow into containers fast and evenly. When liquid level is low, pump is on, liquid is pumped into holding tank, when liquid reaches high level, pump is off.

Suitable For The Liquids :

This time filling machine is best suited for liquids with very thin and Foamy viscosities that do not change with ambient temperature or with batch variation. Water, vinegar, soy sauce, oil, alcohol, solvent, mouth wash, cleaner, bleach are good examples and even corrosive liquid and chemicals.



Key Features



Model

ZGP-6H

ZGP-8H

ZGP-10H

ZGP-12H

ZGP-16H

Dimension

2000×710×2200mm (L×W×H)

2200×710×2200mm (L×W×H)

2300×710×2200mm (L×W×H)

Filling head

6

8

10

12

16

Capacity(1L)

1500B/H

1800 B/H

2200 B/H

2800 B/H

4000 B/H

Power

1 KW

1 KW

1 KW

1.5 KW

1.5KW

Suitable bottle

Diameter:Φ40mm——Φ100mm  Height:80mm——280mm

Filling accurate

≤100ml:+ -1.5ml
100-500ml:+ -2ml
500-1000ml:+ -3ml

Neck diameter

Φ18mm

Filling range

50ml——1000ml, 1000ml-5000ml

Air pressure

0.6Mpa

Power supply

220V  ;50HZ



Main Technical Parameter

1.Capacity max 4000 bottles per hour
2.filling volume 50-1000ml, 1000ml-5000ml
3.measurement precision 50-200ml: ±1%;  200ml-1000ml:±0.5%; 1L-5L: ±0.5%
4.applicable bottle diameter 40-100mm
5.applicable bottle height 60-300mm
6.air pressure 0.6Mpa
7.total power 1kw, 1.5Kw
8.voltage AC220V,50/60Hz
9.net weight 900kg
10.dimension 2200(L)×710(W)×2200(H)mm
