Liquid Detergent Filling Machine
Suitable for : Liquid Soap , Laundry Liquid , Liquid Detergent , Dishwasher , Clothes Liquid... Filling Range : 50ml -1000ml / 1L-5L Capacity Speed : 1000-6000BPH can be choosen No Leaking , No Bottle No Filling Less worker Meet GMP Standard

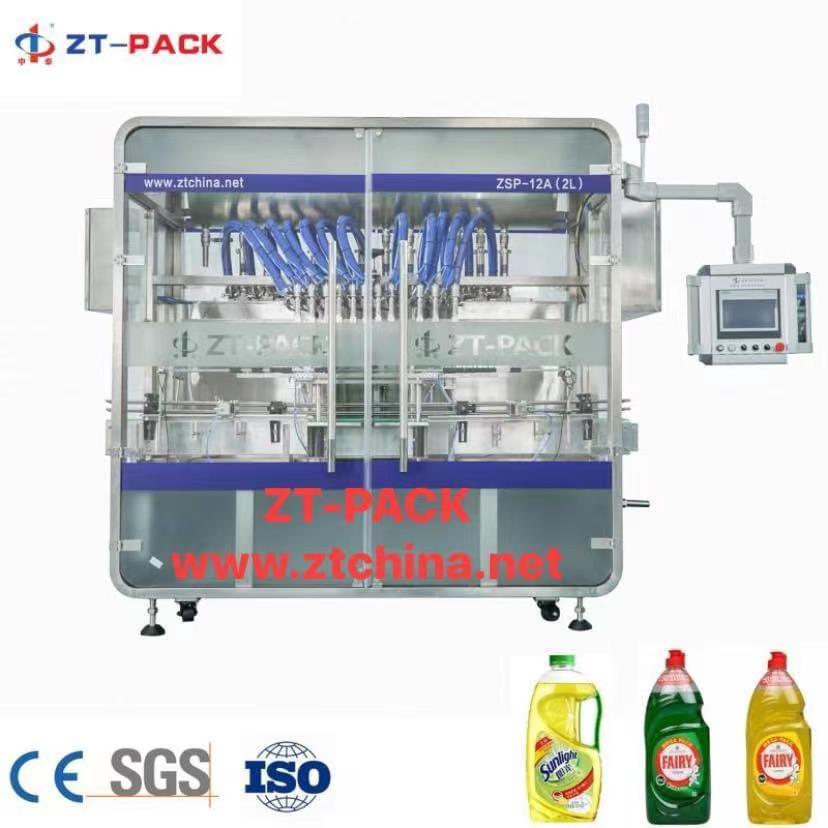

Machine Name : Full Automatic Liquid Detergent Filling Machine
Automatic linear piston filling machines is an extremely flexible piston fillers capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates. Widely used in food industry(e.g.,paste filling machine, butter filling machine, jam filling machine, ketchup filling machine, honey filling machine, edible oil filling machine, sauce filling machine etc); household product industry(e.g.,shampoo filling machine, liquid soap filling machine, liquid detergent filling machine, hand wash filling machine etc), personal care industry(e.g.,cream filling machine, lotion filling machine, gel filling machine, perfume filling machine etc); Chemical industry(e.g., grease filling machine, lubricant filling machine etc); pharmaceutical industry(e.,g ointment filling machine, e liquid filling machine etc).
Automatic linear piston filler is designed for completely automatic, multiple position, inline dispensing of liquids and pastes in volume ranging from 50ml to 1000m per cycle. Available in 6, 8, 10 ,12 and 16 nozzle configurations to match specific production requirements, Dual lane option is available to increase production by 100% while preserving valuable line space.
Linear piston liquid filling machinery is manufactured with a 304 stainless steel frame, It comes standard with PLC control and touch screen HMI ensuring reliable, repeatable control with minimal operator intervention, Precision bored, heavy- walled metering cylinders dispense product at accuracy up to +/- 0.2%, High-precision, servo motor driven screw movement faster and more precise than pneumatic system, food grade stainless steel and plastics for sanitary operations or use,anodized aluminum components, plus many more features available with motorized conveyor and indexing package for integrated container handling and positioning, No container/No fill feature detects missing or mispositioned containers to prevent waste and product spillage. Unique variable, separate speed control and actuator of a dual-stage fill provides precise “no spill” control for top-off applications or filling difficult products.
Empty bottles are staged on the main drive conveyor prior to entering the piston filler. Bottles enter the filler and are counted by optical sensors to ensure the correct numbers of bottles are in position. Once in place, bottles are locked in position by the pneumatically operated bottle clamping mechanism. This ensures bottles are located correctly under each filling head to minimize under or over-fills. The filling process begins as a series of stainless steel valves descend into the bottles for fast, accurate and consistent filling. After target volume is achieved, the out-gate cylinder withdraws itself from its position and allows the filled bottles to go further on the conveyor for the sealing operations.

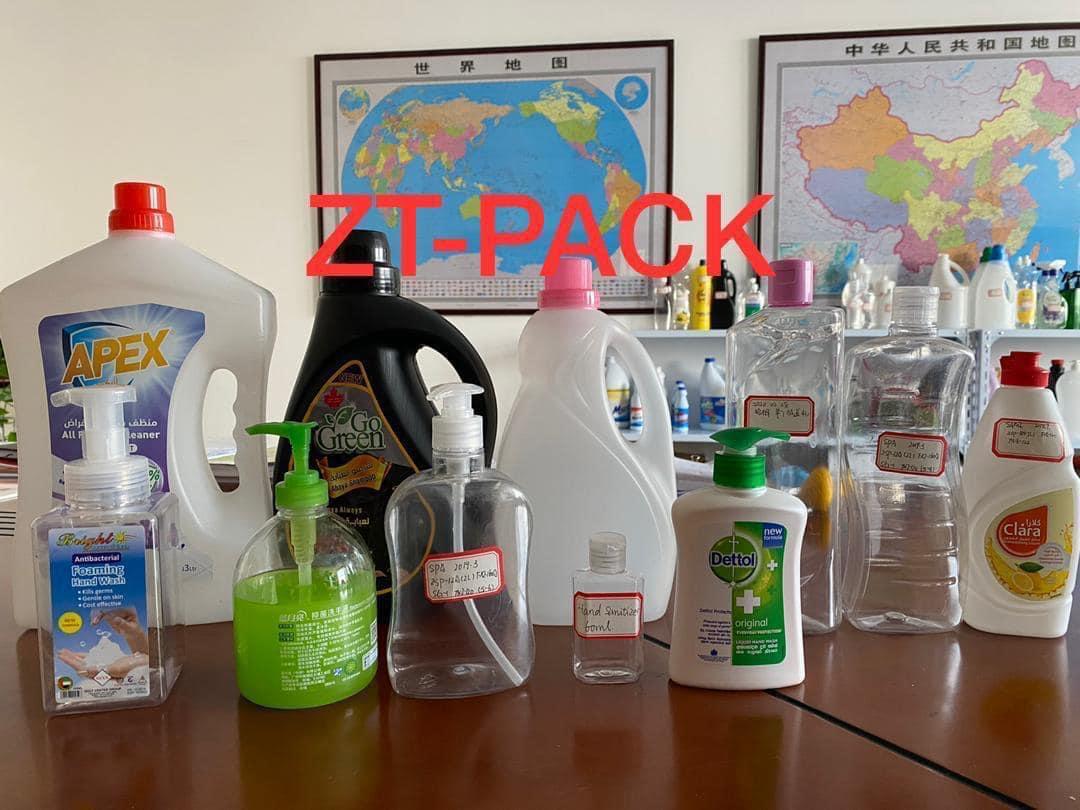

Suitable for Fill :
Details pictures :
Key Features :
Heavy-duty stainless steel constructed
Stainless steel Reservoir
Automatic Bottling Index kit with bottle counter
Pneumatic indexing gates (count in, count out)
Automatic product level sensing float system
Easily adjustable nozzle height settings accommodate vials to gallons
User friendly PLC controls with touch screen HMI
No bottle/No fill sensor
Bottle backup sensor (downstream) delays operation until jam is cleared
Able to output multiple doses per container for large containers
Easy clean stainless steel quick connect fittings
Diving heads nozzles for bottom up filling to reduce foam
Neck grabbers for containers with small opening
Specifications are subject to change without notice, All rights are reserved.
How to choose automatic piston filling machine is big challenge for customers, If your are unsure how to choose a piston filling machine,Please let me know
What product to fill
What output capacity to achieve
What material and shape of containers
What size of containers to fill
Our professional team will help you to choose
So please contact us for specific advice on the best solution for you now.
